    Double Strands Barbed Wire Mesh Machine / Razor Blade Making Machine Heavy Type

    Ask Lasest Price
    Brand Name : JG
    Model Number : CS-A,CS-B,CS-C
    Certification : CE,ISO9001
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 50 sets per month
    Delivery Time : 10 days
    Price : 5000US$
    • Product Details
    • Company Profile

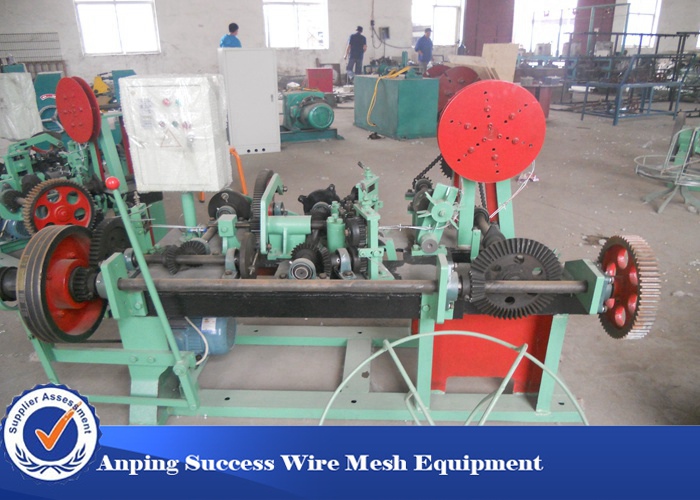

    Double Strands Barbed Wire Mesh Machine / Razor Blade Making Machine Heavy Type

    Double Strands Barbed Wire Mesh Machine / Razor Blade Making Machine


    Describe


    1. The machine is compose of spool wire and twist wire two parts. And the machine is fitted with four disks for wire rewinding.

    2. The machine is coordination of various components ,gentle movement.


    Parameter of barbed wire machine


    ModelCS-ACS-BCS-C
    Motor2.2KW2.2KW2.2KW
    Main drive shaft speed402 r/min355 r/min355r/min
    Wire diameter2.2-3.0 mm2.2-3.0 mm1.6-2.2 mm
    Barbed wire diameter1.8-2.2mm1.8-2.2mm1.6-2.2mm
    Barbed Space76,102,127102,127102,127
    Twisted number3-57
    theoretical production77kg/h40kg/h40kg/h
    weight1000kg950kg950kg
    Main part size1950x950x1300mm3100x1000x1150mm3100x1000x1150mm

    Application


    The machine is mainly applicable to the production of a variety of multi-strand barbed rope. The usage materials should be consistent with stable, flexible operation and reliable.


    Guarantee and After-sale Service


    1. Warranty: One Year.

    2. Enough spare parts of machines could be supplied.

    3. Factory Own Designing and Inspection Team.

    4. All machines were tested and adjusted before delivery.

    5. Engineers avaliable to service machinery overseas: Worker-training, installation.etc.

    6. 24 hours technical support by e-mail or calling service.
