    1.25m Width Expanded Metal Machine Easy Operation / Installation JQ25-25

    Ask Lasest Price
    Brand Name : JG
    Model Number : JQ25-25
    Certification : CE
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 20 sets/month
    Delivery Time : 20 days
    Price : 7000US$
    • Product Details
    • Company Profile

    1.25m Width Expanded Metal Machine Easy Operation / Installation JQ25-25

    1.25m Width Expanded Metal Machine / Grill Grates Metal Mesh Machine


    Description


    1. Expanded metal mesh machine can be separated two kinds which are stretch net and perforated metal.

    2. It adopts automatic lubricating system,automatic feeding material by step motor ,the electric system is PLC control.it running stable, operation easy.

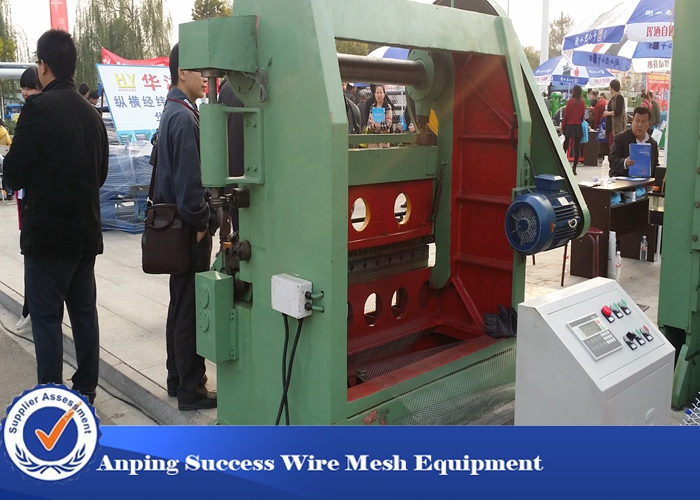

    Detailed Images


    Steel Screen Machine


    Model SpecificationsPunching Shear Material ThicknessMaximum Punching Shear ThicknessSlider Reciprocating TimesFeeding DistancePunching Shear Mesh Length DistanceMotor PowerTotal WeightOverall Dimensions
    JQ25-6.3<=1.0mm500mm180/min0-1.15mm<=20mm2.2KW0.95T950X570X1780
    JQ25-16<=1.0mm1000mm150/min0-1.2mm<=25mm3KW2T1800X1320X1550
    JQ25-25<=1.5mm1200mm150/min0-1.2mm<=30mm4KW3T1940X1600X2010
    JQ25-63A<=2.5mm2000mm70/min0-4mm<=100mm11KW10T2400X3500X2300
    JQ25-63 B<=3mm2000mm45/min0-4mm<=200mm11KW10T2400X3500X2300
    JQ25-100<=4mm2000mm60/min0-4<=150mm15KW12T3600 x 2500 x 3000
    JQ25-160A<=6mm2000mm20/min0-7mm<=200mm22KW18T5500X1750X3300
    JQ25-160B<=6mm2500mm20/min0-4mm<=200mm22KW20T5500X1750X3300

    Feature


    1. simple structure and easy installation

    2 . high working speed and low noise
